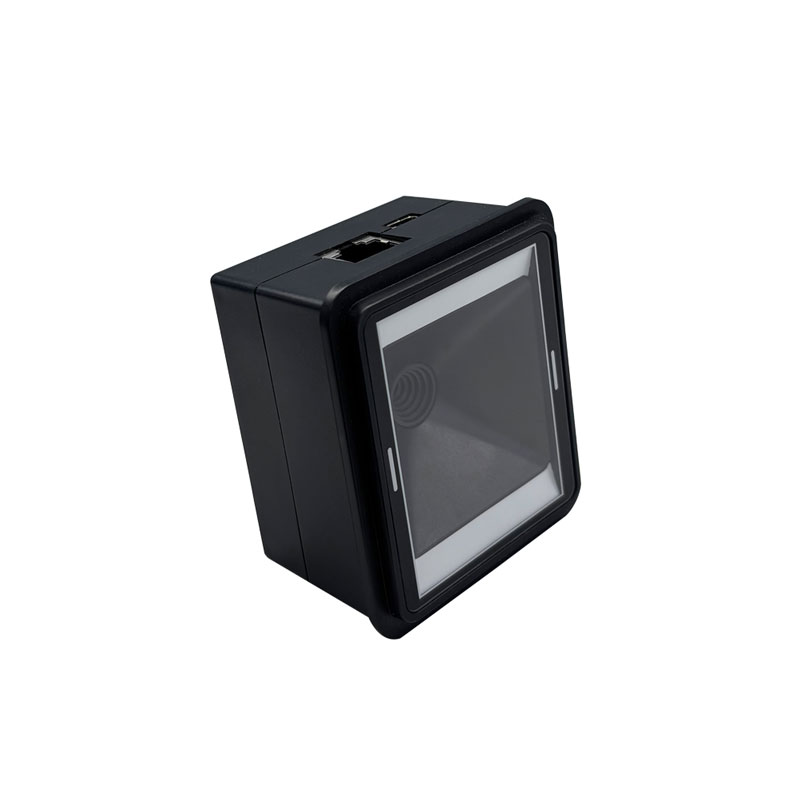

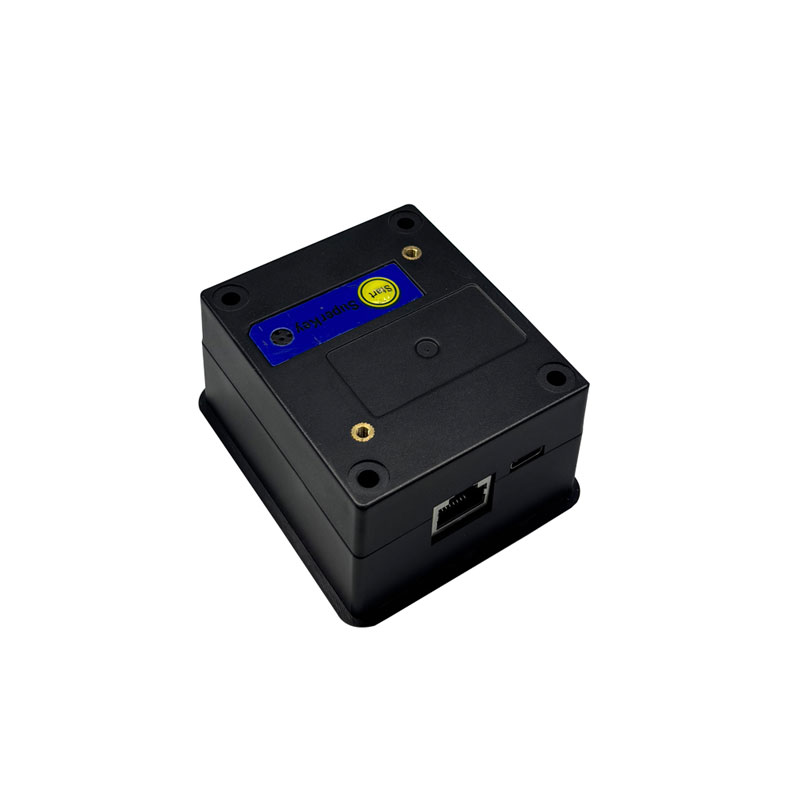

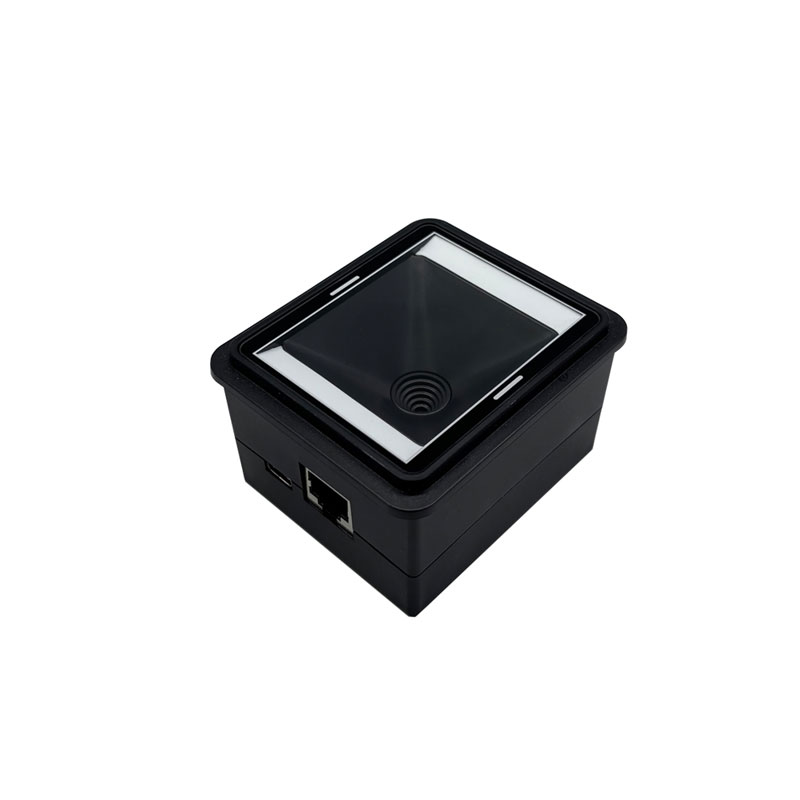

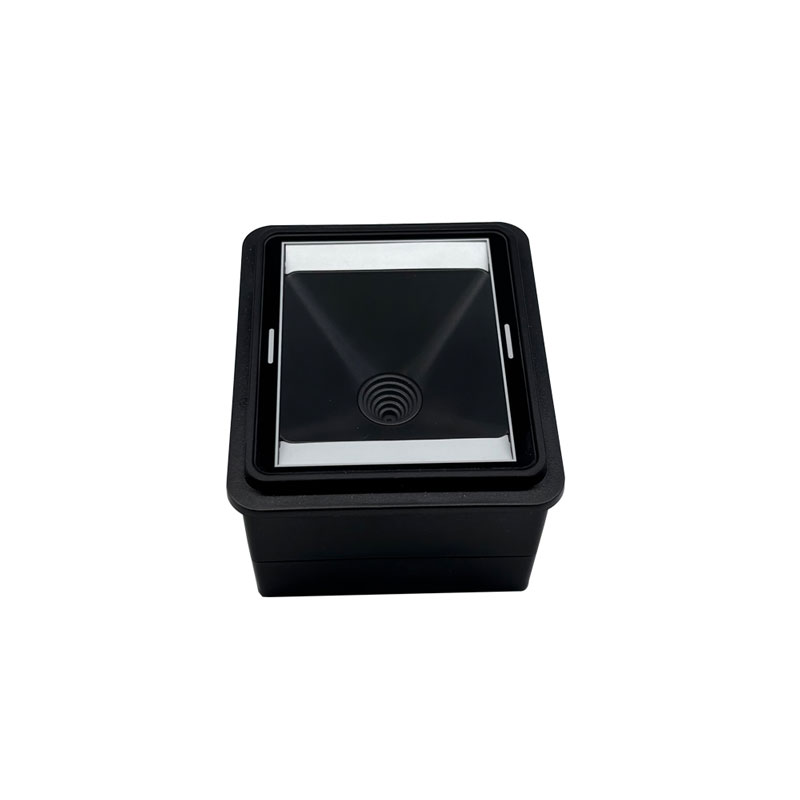

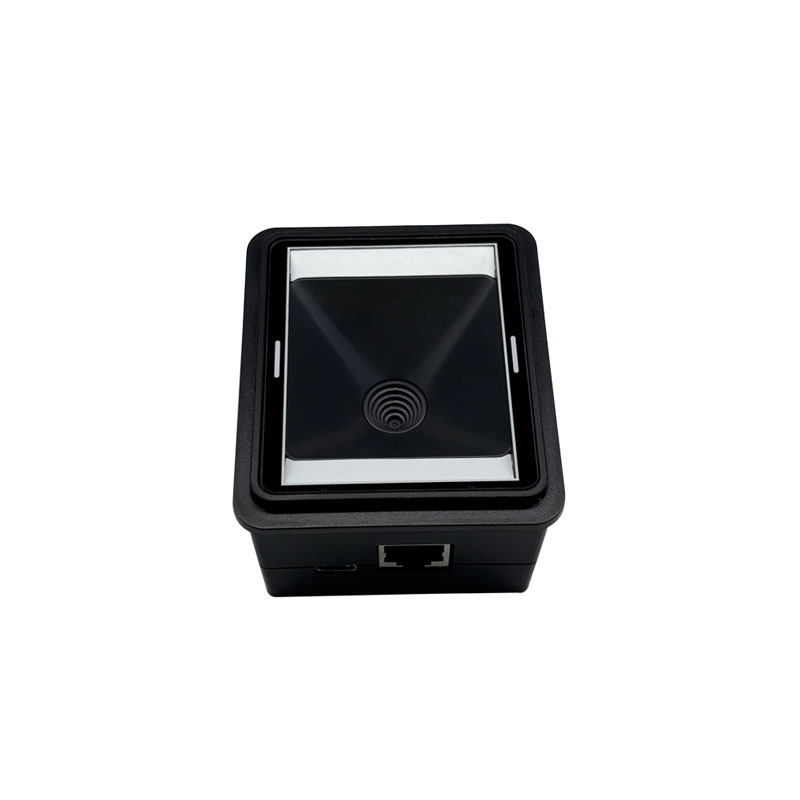

LV5500 Advanced 2D Barcode Reader with NFC
Product Description
Upgrade your operations with the LV5500, a feature-rich scanner offering NFC/RFID compatibility for smart cards, mobile payments, and access control. Scan 1D/2D codes, including GS1, Aztec, and Alipay payment codes, with 360° omnidirectional reading. Its compact design (77.8×66.4×44.7mm) suits space-constrained setups like smart lockers and gaming machines. Customize protocols (USB HID, virtual COM, RS232/RS485) and leverage 5V–16V wide voltage for diverse installations. Built to last with thermal shock resistance and 95% humidity tolerance.
Superior Compatibility, Supports All Barcode Types
Compatible with 100+ 1D/2D barcodes, including QR Code, PDF417, Data Matrix, EAN-13, UPC-A, GS1, and more. Effortlessly scans paper-based codes and screen codes (e.g., Alipay payment codes), ideal for retail, logistics, healthcare, and multi-scenario applications.
Flexible Interfaces & Wide Voltage Input for Seamless Integration
Offers USB, TTL, RS232/RS485 communication interfaces and a default 5V power supply, with an optional 5–16V wide voltage input to adapt to diverse power environments. Supports global industrial standards for effortless deployment.
Industrial-Grade Durability for Harsh Conditions
Built to withstand operating temperatures from -20℃ to +60℃ and storage temperatures from -40℃ to +70℃. Resists 95% humidity and 100,000 LUX intense light, with thermal shock resistance (high/low temperature cycling), perfect for outdoor terminals and cold chain logistics.
Precision Scanning & Smart NFC Functionality
Equipped with a 640×480 CMOS sensor (optional 1280×800 HD) and a minimum decode capability of 1D 6mil/2D 10mil. Supports ±55° tilt and 360° rotation scanning. Integrated NFC/RFID module for reading/writing Mifare, CPU cards, mobile NFC, and compatibility with access control, payment, and authentication systems.
Compact Design & Multi-Industry Adaptability
Ultra-compact dimensions of 77.8×66.4×44.7mm and lightweight 70g design. Easily integrates into space-constrained devices like self-service kiosks, ATMs, and gaming machines. Covers 20+ scenarios, including e-commerce self-pickup cabinets, smart parcel lockers, queue terminals, and lottery systems, delivering a complete IoT solution.
Fixed-Mount Barcode Scanner Parameters
| Scan Performance | Imaging sensor | 640×480 CMOS | |
| Lighting | White, LED 6500K | ||
| Read code system | 2D | PDF417, Data Matrix, QR Code,AZTEC | |
| 1D | And EAN-13,EAN-8,UPC-A,UPC-E,Code 39,Code 128,ISBN,Code 93,Code 11,UCC/EAN-128,GS1 Databar,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Codabar,Standard 2 of 5,MSI-Plessey,GS1 composite code, et al | ||
| Reading accuracy | 1D ≥6mil 2D≥10mil | ||
| Typical reading of the depth of field | 10-200CM Alipay payment code | ||
| 20-120CM EAN13 13mil | |||
| Symbol Contrast | ≥20% | ||
| Bar code sensitivity | Ttilt ± 55°, deflection ± 55°, and rotation 360° | ||
| Field of view Angle | Horizontal, 66°, and 50° vertical | ||
|
Machinery Electrical Parameters
|

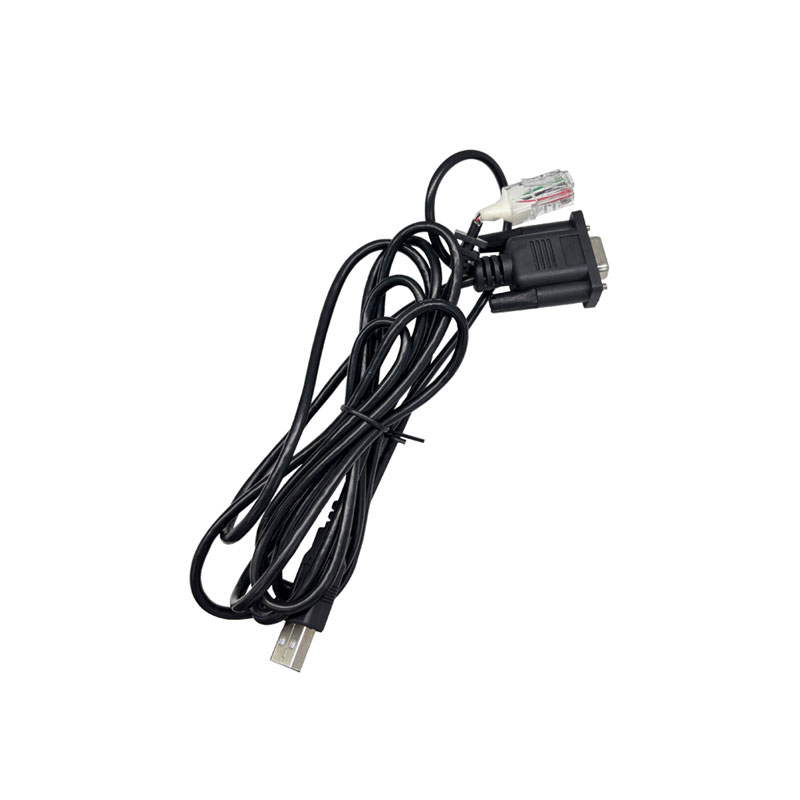

Communication interface | USB (optional, HID, virtual serial port), TTL serial port; Customizable RS232, RS485 | |
| Visual dimensions (mm) | 77.8(D)×66.4(W)×44.7 (H) | ||
| Weight | 70g | ||
| Working voltage | Power supply is 1:4-6V (5V power supply) by default
Power supply 2: customized 5V-16V wide voltage Note: Power supply 1 and power supply 2, choose one or the other, not at the same time |
||
| Rated current | (Typical value) is less than 190 mA (5V input) | ||
| Enviromental Parameter | Working temperature | -20℃~+60℃ | |
| Storage temperature | -40℃~+70℃ | ||
| Working humidity | 5%~95% (no condensation) | ||
| Environmental light | 0~100,000LUX | ||
| Thermal Shock Resistance | Maximum temperature | 60°C (140 °F) | |
| Minimum temperature | -20°C (-4 °F) | ||
| Cycle index | 30 minutes for high temperature; 30 minutes for low temperature | ||
| Period | 24 | ||
