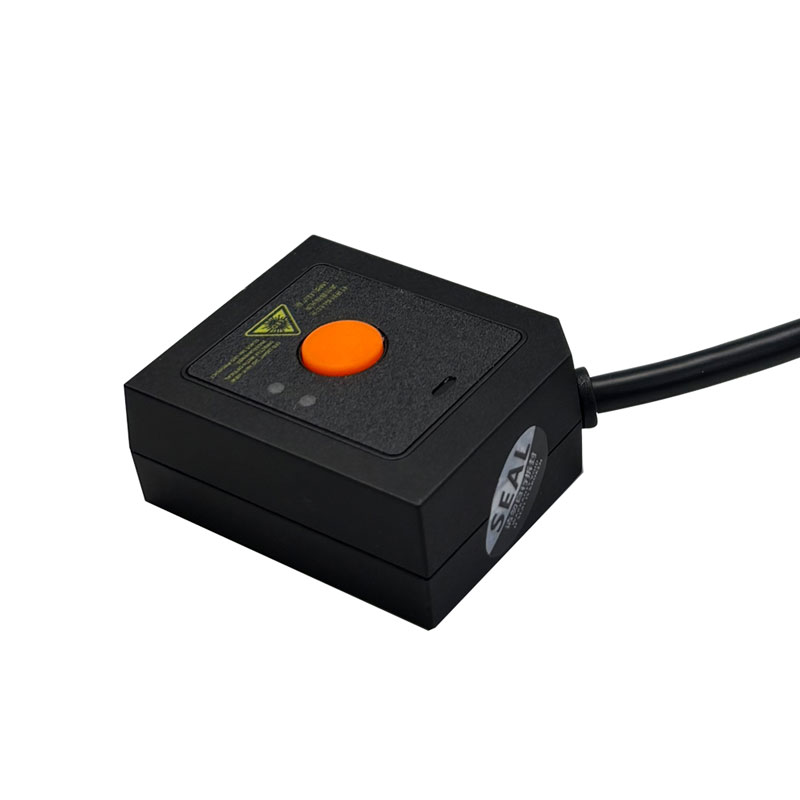

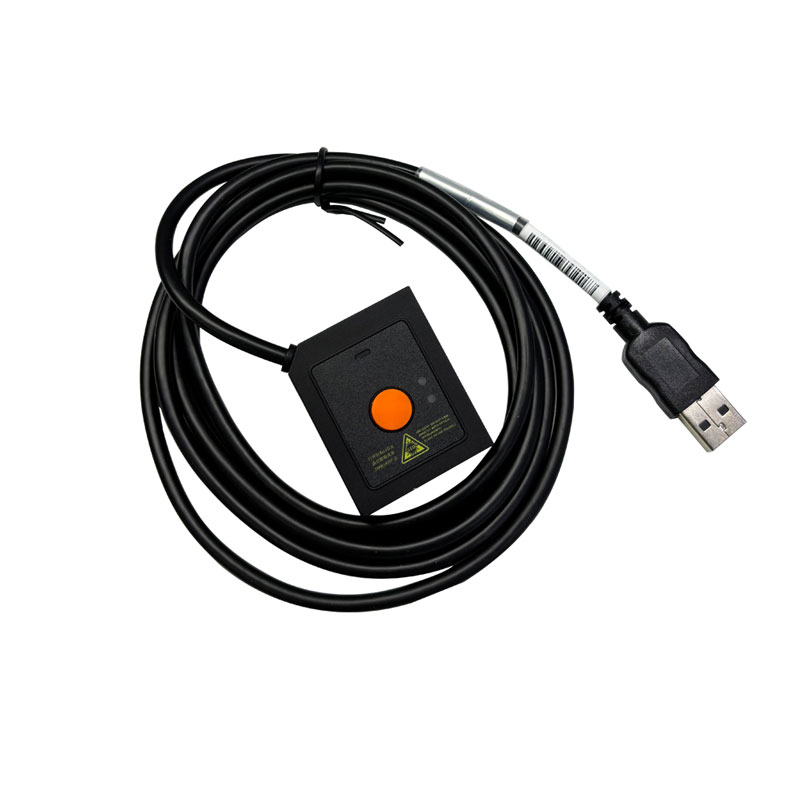

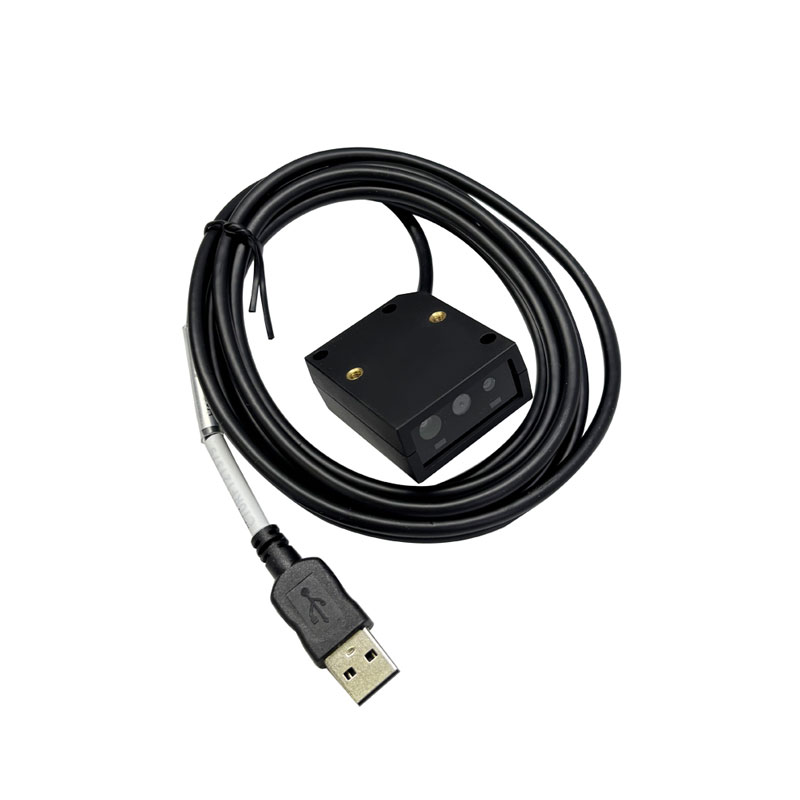

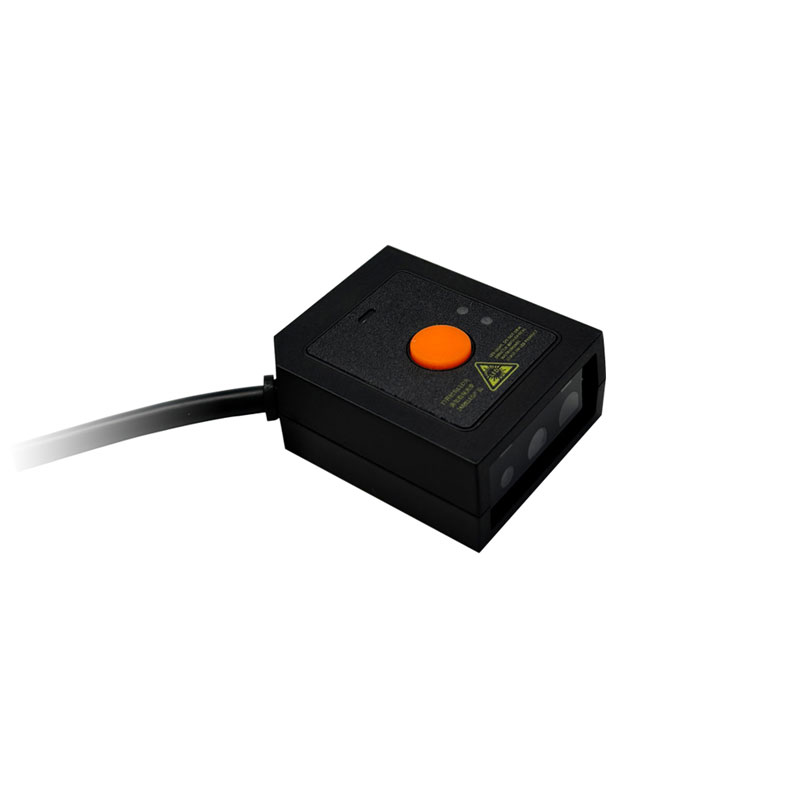

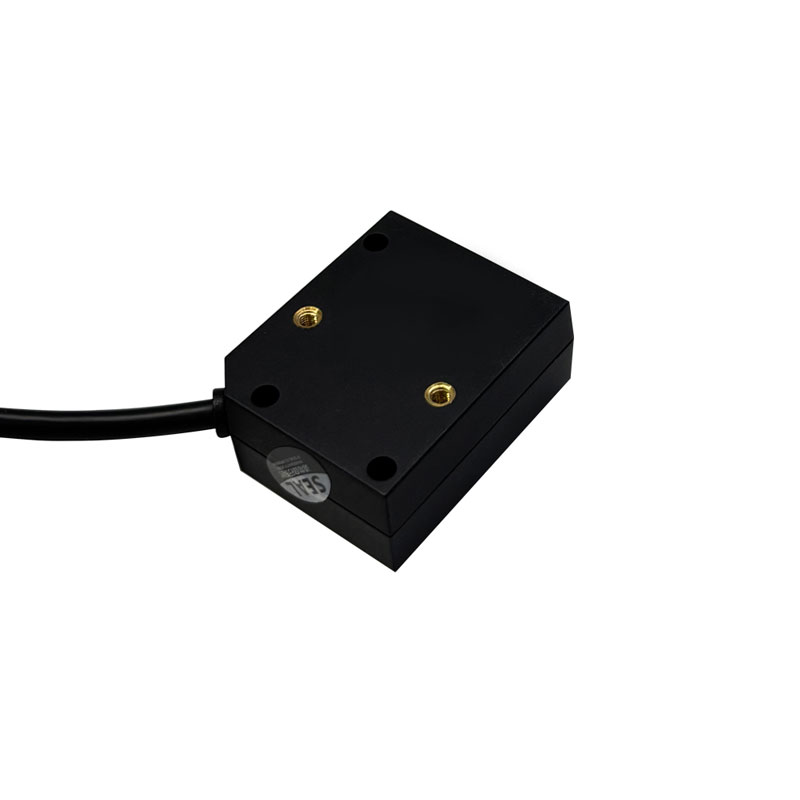

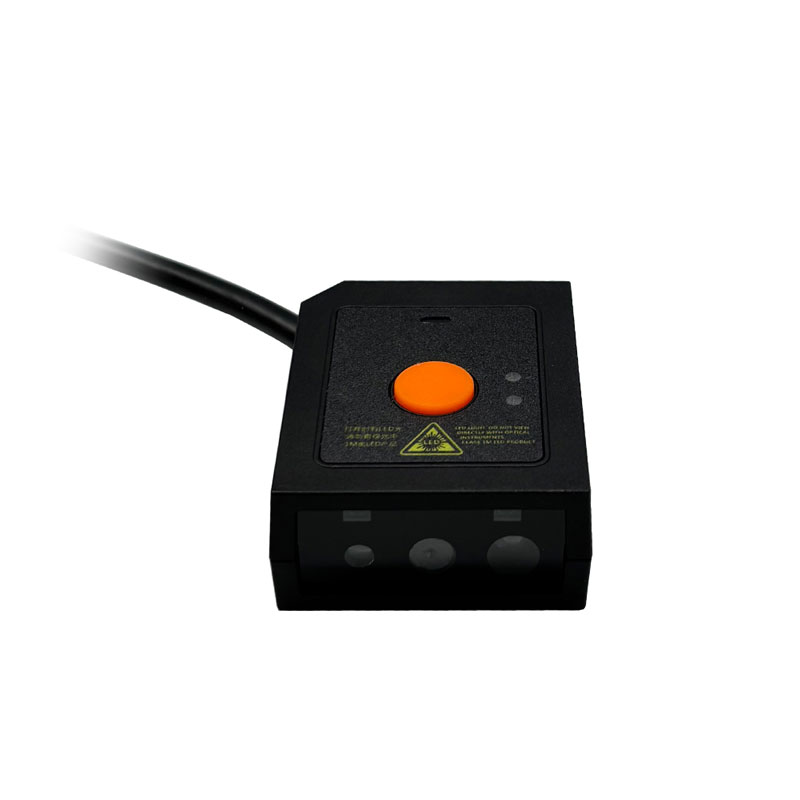

LV3000T Fixed Barcode Reader | 60FPS High-Speed Scanning for Parcels, Lockers & Turnstiles
Product Description
Boost efficiency in logistics, parcel sorting, and self-service terminals with Rakinda’s LV3000T fixed scanner. Its high-speed 60FPS imaging and extended depth of field (35mm–320mm) ensure first-pass reads on moving items like express cabinet packages and tickets. The 1MP sensor decodes low-contrast 1D/2D barcodes (from 4mil 1D, 7mil 2D) even on crumpled labels. With IP54 protection, ±12kV ESD resistance, and -20°C~50°C tolerance, it thrives in demanding applications like warehouse automation, medical devices, and outdoor ticketing systems.
Key Features for IP54 Barcode Reader:
* 60FPS High-Speed Barcode Scanner – For moving conveyors
* Long Depth of Field – Reads from 35mm to 320mm
* Low-Contrast Barcode Reading – Damaged/dirty labels
* Omni-Directional Scanning – All 1D/2D symbologies supported
* IP54 & Shock-Resistant – For industrial/outdoor use
* USB/RS232 Connectivity – Plug-and-play installation
Parameters of Industrial Barcode Scanner
| Scan Performance | ||
| Resolution | 1280*800 | |
| Field of view | Horizontal 46°(H)·Vertical 29°(V) | |
|
Symbologies |
2D
1D |
Data Matrix , QR Code , Micro QR , PDF 417 , Micro PDF 417 , Aztec ,MaxiCode
UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 ,IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited Composite Code-A ,Composite Code-B , Composite Code-C |
| Reading mode | Key mode, serial command trigger mode | |
| Reading accuracy | 1D : ≥4 mil ; 2D : ≥7 mil | |
| Typical reading depth of field | Code 39 (4mil) 40mm ~110mm | |
| Data Matrix(10mil) 35mm~300mm | ||
| 100%UPCA (13mil) 35mm ~320mm | ||
| Lighting | White light LED | |
| Focusing | Red LED line | |
| Print contrast | ≥30% | |
| Mechanical and Electrical Parameters | ||
| Outer dimensions | 37 (W) × 45(D) × 18.2 (H)(mm) | |
| Weight | About 30g | |
| Communication interface | USB ，RS-232 ，Virtual COM Port | |
| Prompting mode | Beep, LED indicator | |
| Working voltage | DC 5V±5% | |
| Working current | 200 mA ± 5% (typical), 350 mA ± 5% (maximum) | |
| Wait for the electromotive force | 100 mA ±5% | |
| Enviromental Parameter | ||
| Working temperature | -20℃~+50℃ | |
| Storage temperature | -40℃~+70℃ | |
| Relative humidity | 5%~95% (no condensation) | |
| Electrostatic protection | ± 12kV (air discharge), ± 8kV (direct discharge) | |
| Drop height | 1.5 meters | |
| Levels of protection | IP54 | |
| International Certification | ||
| Levels of protection | FCC Part15 Class B ，CE ，EMC Class B | |
