Compact LV3000S Fixed Scanner | Plug-and-Play USB/RS232 for Kiosks & Terminals
Product Description

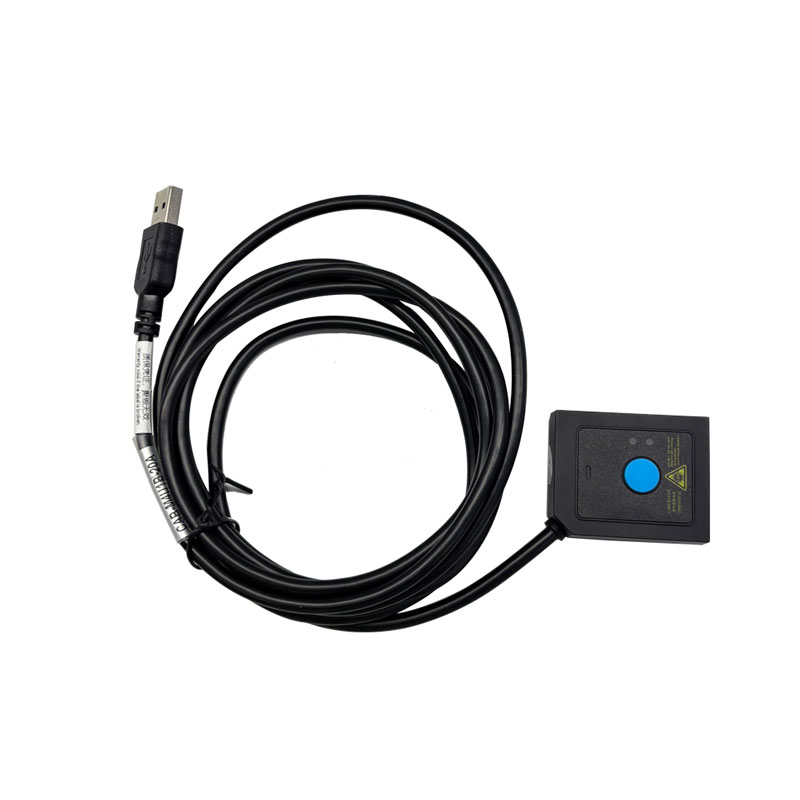

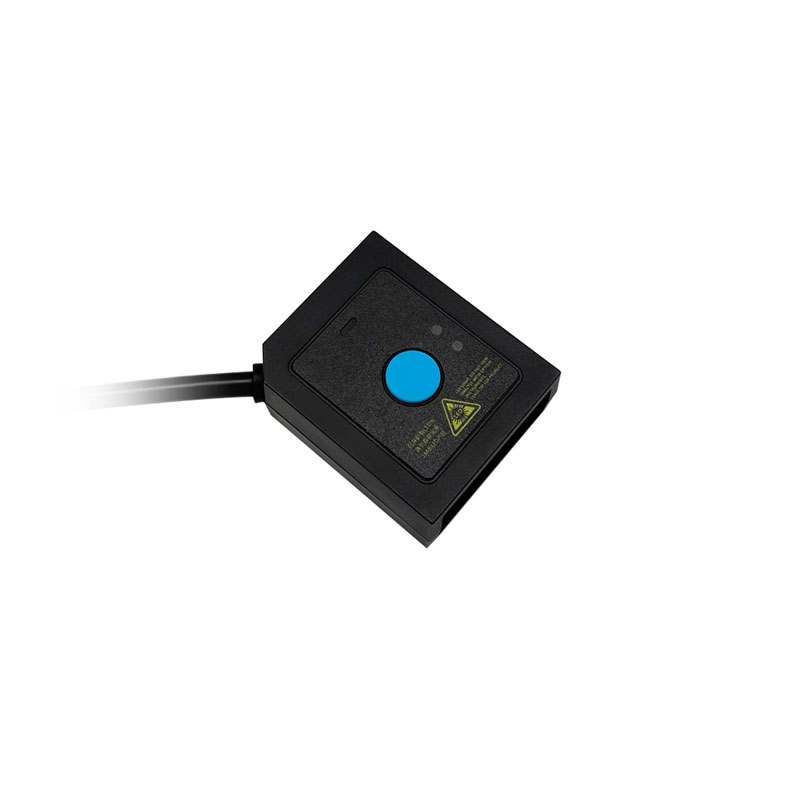

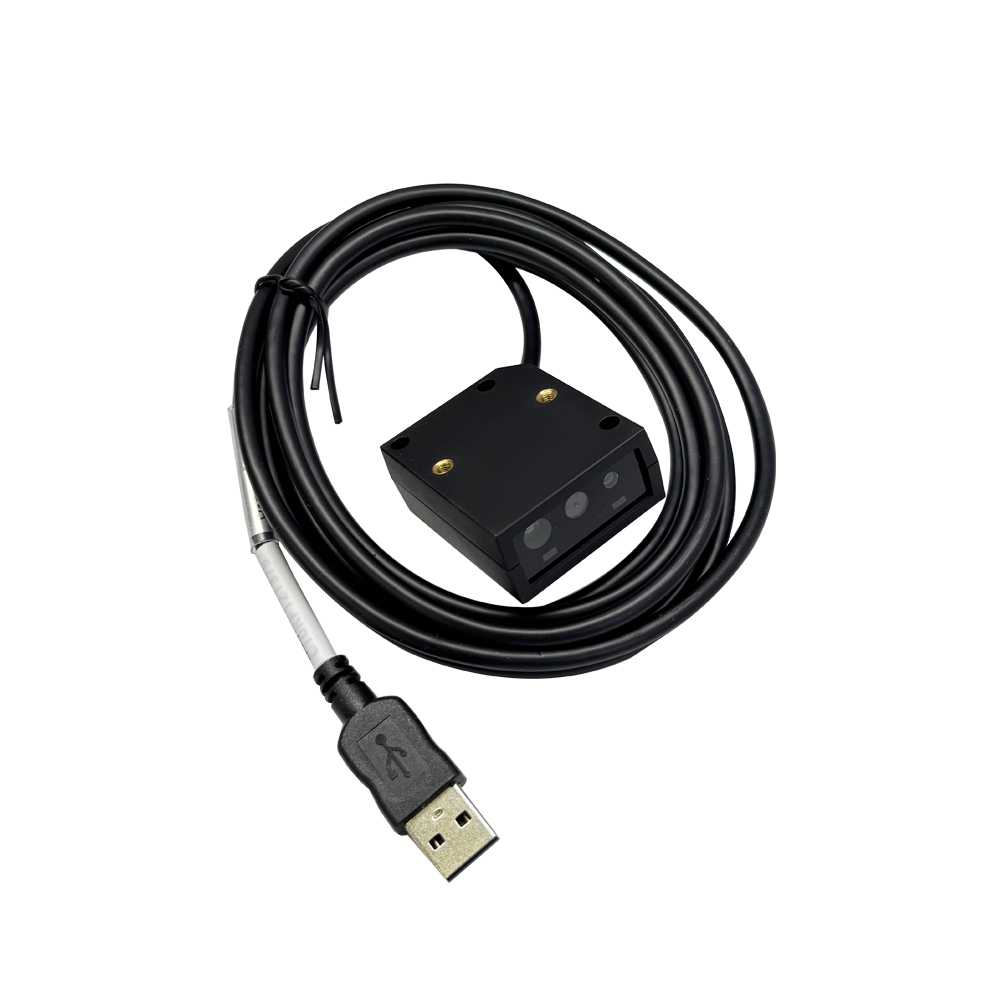

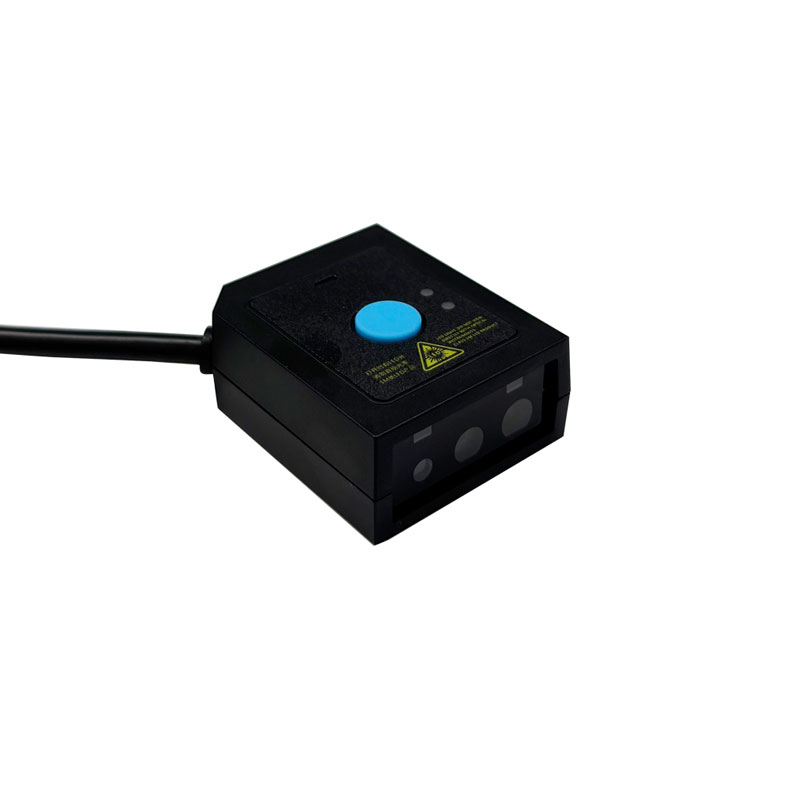

Simplify automation with the ultra-compact RAKINDA LV3000S Barcode Scanner. Designed for self-service kiosks, smart cabinets, and access control systems, its 37×45×18.2mm frame and 30g weight enable effortless embedding. The scanner captures all major 1D/2D symbologies—from UPC/EAN to Data Matrix and Aztec codes—with industry-leading >3 mil (1D) and >5 mil (2D) precision. Select HD focus for dense barcodes or SR focus for versatility. With IP54 rating, 5V DC power, and low 50mA standby current, it reduces operational costs. Plug-and-play via USB/RS232/Virtual COM ensures rapid deployment. FCC/CE/EMC Class B certified for global compliance.
Parameters of self-service kiosk scanner
| Scan Performance | ||
| Resolution | 752 (H) * 480 (V) high sensitivity C-MOS sensor | |
| Lighting | White LED (SR); Warm white LED (HD) | |
| Code Reading System | 2D
1D |
Data Matrix , QR Code , Micro QR , PDF 417 , Micro PDF 417 , Aztec ,
MaxiCode UPC A ,UPC E ,EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 ,Code11 , Codabar ,Plessey , MSI ,Interleaved 2 of 5 ,IATA 2 of 5 , Matrix 2 of 5 ,Straight 2 of5 , Pharmacode ,RSS-14 ,RSS-14 Expanded , RSS-14 Limited Composite Code-A ,Composite Code-B , Composite Code-C |
| Reading mode | Key mode, serial command trigger mode | |
| Reading accuracy | 1D : ≥3 mil ; 2D : ≥5 mil | |
|
Typical reading depth of field |
LV3000S-SR LV3000S-HD | |
| Code 39 (4mil) 70mm ~150mm 40mm ~90mm | ||
| Data Matrix(10mil) 40mm~300mm 40mm~200mm | ||
| 100%UPCA (13mil) 40mm ~390mm 40mm ~280mm | ||
| Focusing | 617nm red LED lines | |
| Field of view | Horizontal 43° (H), vertical 29° (V) Horizontal 38° (H), vertical 25 ° (V) | |
| Mechanical and electrical parameters | ||
| Outer dimensions | 37 (W) × 45(D) × 18.2 (H)(mm) | |
| Weight | About 30g without cable | |
| Communication interface | USB ，RS-232 ，Virtual COM Port | |
| Prompting mode | Beep, LED indicator | |
| working voltage | DC 5V±5% | |
| working current | 200 mA ± 5% (typical), 350 mA ± 5% (maximum) | |
| Wait for the electromotive force | 50 mA ±5% | |
| Enviromental Parameter | ||
| working temperature | -10℃~+50℃ | |
| Storage temperature | -40℃~+70℃ | |
| Relative humidity | 5%~95% (no condensation) | |
| Electrostatic protection | ± 8kV (air discharge), ± 4kV (direct discharge) | |
| Drop height | 1.5 meters | |
| Levels of protection | IP54 | |
| International certification | ||
| Levels of protection | FCC Part15 Class B ，CE ，EMC Class B | |
