- Fixed Mount 2D Scanner is environmentally sealed to an IP65 rating to prevent dust, moisture and other contaminant from entering it.
- Features:
- 1.IR/Light Triggers
- 2.Automatic Exposure Control (AEC)
- 3.IP54-sealed Housing
- 4.Unmatched Reading Performance
- 5.Highly Visible Laser Aimer
- 6.1.5m Drop Resistance

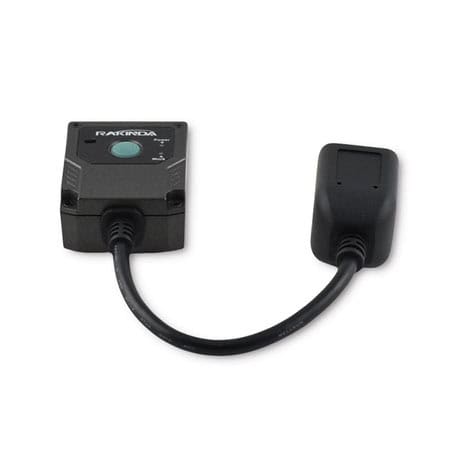

MRZ OCR Passport Barcode Scanner Module
Product Description
Fixed Mount 2D Scanner is environmentally sealed to an IP65 rating to prevent dust, moisture and other contaminant from entering it.
Product Features:
1. IR/Light Triggers
The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.
2. Automatic Exposure Control (AEC)
The sensors in the LV3000U automatically adjust the brightness of supplementary lighting based on the light reflected off barcode.
3. IP54-sealed Housing
The LV3000U is environmentally sealed to an IP54 rating to prevent dust, moisture and other contaminant from entering it.
4. Unmatched Reading Performance
The LV3000U is capable of reading 1D as well as high-volume 2D barcodes on the screencovered with protective film.
5. Highly Visible Laser Aimer
The LV3000U provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.
6. 1.5m Drop Resistance
The scanner withstands multiple 1.5m drops toconcrete (for six sides, three drops per side).
Product Parameters:
| Item number | LV3000U |
| Interface | RS232/USB |
| Image Sensor | 1280*800 CMOS |
| Symbologies | 2D: PDF417, Data Matrix, QR Code, Aztec, CSC, Maxicode, Mircro QR, Micro PDF417, GM, Code One, etc. 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey |
| Precision | 3 mil |
| Light Source | White LED Laser Diode or green LED |
| Scan Mode | Sense Mode, Continuous Mode, Level Mode,Pulse Mode |
| Drop | 1.5m |
| Power Consumption | 1622mW (Typical) |
| Weight | 75g |
| Dimensions | 41.5 mm(L) X 49.5mm (W) X 24.3mm(H) |
| Notification | Beep, LED Indicator |
| Operating Temperature | -20 ℃ to +60 ℃ |
| Storage Temperature | -40 ℃ to +70 ℃ |
| Humidity | 5% – 95% ( non-condensing ) |
| Sealing | IP54 |
| Certification | FCC Part15 Class B, CE EMC Class B |
