- LV1400 1D CCD barcode scanner module has three interfaces available: RS232, KB, USB. It weighs only 6g and can be integrated into many OEM devices. Also barcode read swift.

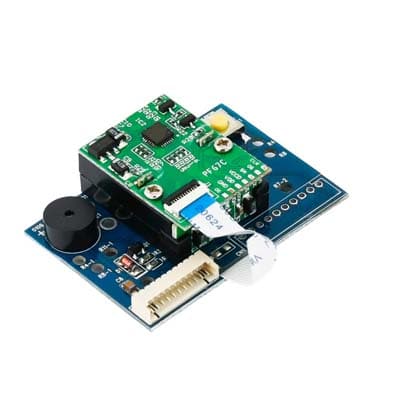

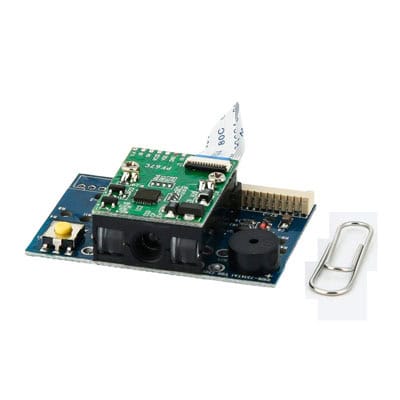

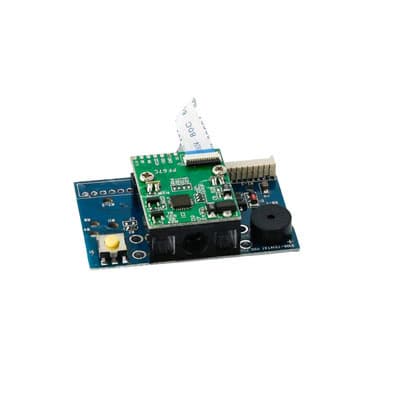

LV1400 1D Barcode Scanner Module
Product Description
LV1400 1D CCD barcode scanner module is ideal for integration into POS, data terminals and other small devices. Also barcode read swift.
Product Feature:
1) LV1400 features versatile interfaces and mini size, which allow for wide compatibility and cost effective installation;
2) LV1400 uses high sensitive linear CCD image sensor. With the scanning rate of 500 scans/sec, it can satisfy customers’ scanning requirement in most cases;
3) LV1400 can accept thrid party and custom plug-ins, giving the LV1400 virtually unlimited application flexibility.
Product Parameters:
| Device Weight | <6g |
| Device Dimension | 26.5mm L * 20mm W * 11.5mm H |
| Cable Length | 1500mm(optional) |
| Interface | USB/TTL-RS232/PS2 |
| Connector | FFC 12pin pitch 0.5 |
| Performance parameters | |
| Light source | 632nm visible red light |
| Image Sensor | Linear CCD Sensor |
| Processor | ARM32-bit |
| Depth of field | 3-50CM |
| Resolution | ≥3mil/0.1mm@PCS90% |
| Print Contrast | 25%PCS |
| Work Voltage | DC 3.3-5V |
| Electriccurrent | 110mA(work);30mA(stand by) |
| Image Resolution | 2500dpi |
| Ambient illumination | 100,000Lux Max |
| Decode Capability | EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128,China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT , Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI,Plessey, ITF14. |
| Environmental parameters | |
| Operating Temperature | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Relative humidity | 5% to 95%(Non-condensing) |
| Drop test | 1.2meter,100times |
| Shock resistance | 10H@125RPM |
